Easylube® RFID Series
| Product Number | EL-60/150/250R |
|---|---|
| Product Model | Easylube® 60/150/250 RFID |
| Outlet Diameter | 1/2" PT (M) |
| Grease Volume | 60 / 150 / 250 ml |
| Grease Interval Range | Adjustable from 1 to 12 months |
| Operating Environment Temperature Range | -20 ~ 60°C (-4 ~ 140°F) |
| Pressure Plate Thrust (Piston) | 75 - 150 psi (5 - 10 bar) Automatic adjustment according to bearing's back pressure |
| Product Size (Height x Diameter) | 60 ml：13.9 x 8.9 cm (5.47 x 3.5") 150 ml：16.3 x 8.9 cm (6.4 x 3.5") 250 ml：19.6 x 10.2 cm (7.7 x 4") |
| Easylube® Original Service Pack
Product Number：ES-60/150/250-XXXX-3B Coding Principles： ES Series + Drive Unit Specifications + Grease Cup Specification + Lithium Battery |
Rated Power (Lithium Battery Model / Specification)： Easylube® P-613B DC 6V × 1500 mAh, UL94-V0 |
| 60 ml (Including P-60C grease cup + P-613B lithium battery)： ES-60-1000-3B High-Speed Service Pack (P-60C-1000 + P-613B) ES-60-1500-3B Multi-Purpose Service Pack (P-60C-1500 + P-613B) ES-60-2000-3B High-Performance Service Pack (P-60C-2000 + P-613B) ES-60-5000-3B Food-Grade Service Pack (P-60C-5000 + P-613B) ES-60-0000-3B DIY Service Pack (P-60C + P-613B) 150 ml (Including P-170C grease cup + P-613B lithium battery)： 250 ml (Including P-260C grease cup + P-613B lithium battery)： |
|
| Hazardous Location Application Specification | File E218441 Class I, Division 2, Groups A, B, C and D |
| CE Certification | EMC SGS Ref. No.: VTMWH2206000309HEA/2022, TERF2206000807ER RED SGS Ref. No.: VTMWH2206000310HEA/2022 LVD SGS Ref. No.: TESA2206000150ES RoHS ETC Ref. No.: 23-01-QAC-130 |
| CNEx Certification | CQST is suitable for explosive environment: Ex ic IIB T5 Gc (Certified Model：150 RFID、250 RFID) |
| Dustproof and Waterproof Grade | IP65 |
It is hereby stated that the manufacturer’s policy provides for continuous improvements and updates. All supplied spare parts may be subject to changes in materials or manufacturing adjustments without prior notice, provided that the technical specifications remain unchanged.

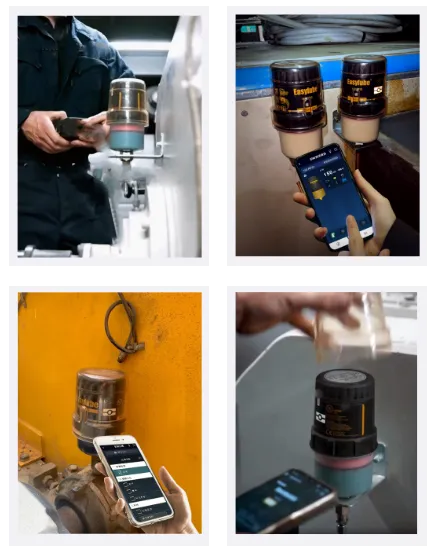

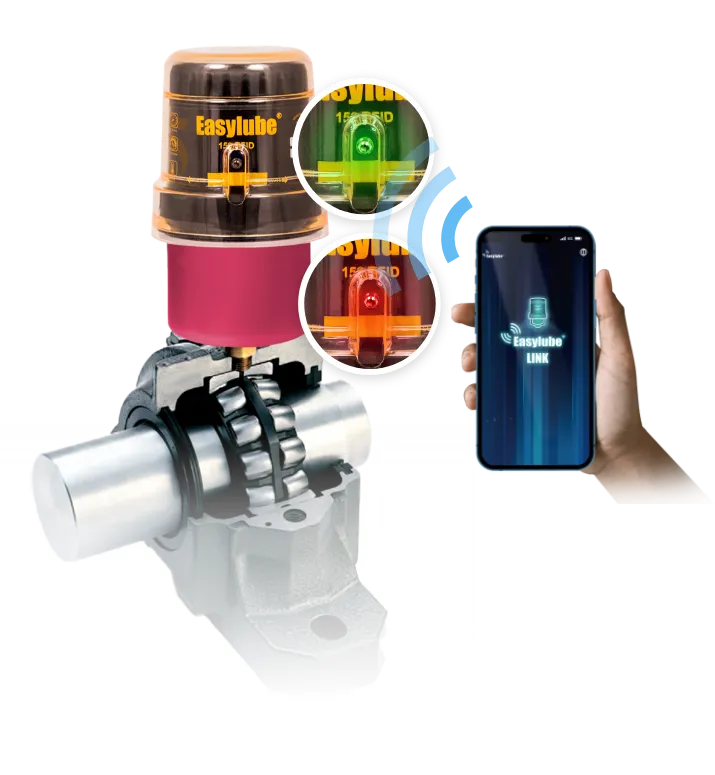

RFID technology (NFC) cooperates with the inspection software to implement "on-site inspection" service management.
IP65 Dustproof and Waterproof Rating Certified.
24-hour active monitoring, once the equipment is abnormal, it will immediately blink the warning light.
The patented grease feedback pressure monitoring system can ensure that grease is added systematically into the bearing for lubrication.
The re-greasing interval can be set according to the bearing operating conditions to the range of 1-12 months.
The lubricator self-test function can be used to confirm whether the driving system is operating normally or not.
