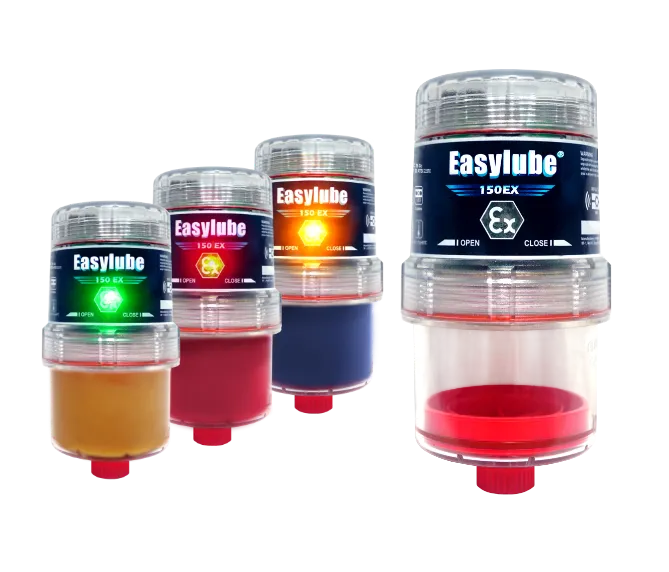

Easylube® EX Series
| Product Number | EX-150EX |
|---|---|
| Product Model | Easylube® 150 ATEX |
| Outlet Diameter | 1/2" PT (M) |
| Grease Volume | 150 ml |
| Grease Interval Range | Adjustable from 0.5 to 12 months |
| Operating Environment Temperature Range | -20 ~ 60°C (-4 ~ 140°F) |
| Pressure Plate Thrust (Piston) | 5 - 150 psi Automatic adjustment according to bearing's back pressure |
| Outlet Pressure (Grease Cup Outlet) | Less than 10 bars to prevent grease leakage through the shaft seal |
| Operation Indicator | Green Light: Normal Timing Single Orange Light: Low Battery Double Orange Lights: Abnormal Pressure Red Light: Grease Injection Complete |
| Product Size (Height x Diameter) | 15.7 x 8.35 cm (6.18 x 3.28") |
| Easylube® Original Service Pack
Product Number：EX-150-XXXX-3A Coding Principles： EX Series + Drive Unit Specifications + Grease Cup Specification + Lithium Battery |
Rated Power (Lithium Battery Model / Specification)： Easylube® P-613A DC 6V x 1600 mAh, UL94-V0 |
| 150ml (Including P-170C grease cup + P-613B lithium battery)： EX-150-1000-3B High-Speed Service Pack (P-170C-1000 + P-613B) EX-150-1500-3B Multi-Purpose Service Pack (P-170C-1500 + P-613B) EX-150-2000-3B High-Performance Service Pack (P-170C-2000 + P-613B) EX-150-5000-3B Food-Grade Service Pack (P-170C-5000 + P-613B) EX-150-0000-3B DIY Service Pack (P-170C + P-613B) |
|
| ATEX Hazardous Location Application Specification |  II 3 G EX ec IIC T6 GcDEMKO 20 ATEX 2227X Rev. 2 |
| IECEx Hazardous Location Application Specification | EX ec IIC T6 Gc IECEx UL 25.0045X |
| Dustproof and Waterproof Grade | IP66 |
| CE Certification | EMC SGS Ref. No.: MH/2020/10001C RED SGS Ref. No.: MH/2020/10002C |
| TS Certification | TD140171 |
It is hereby stated that the manufacturer’s policy provides for continuous improvements and updates. All supplied spare parts may be subject to changes in materials or manufacturing adjustments without prior notice, provided that the technical specifications remain unchanged.

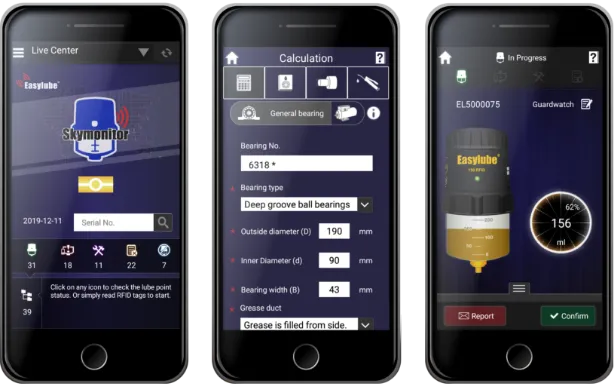

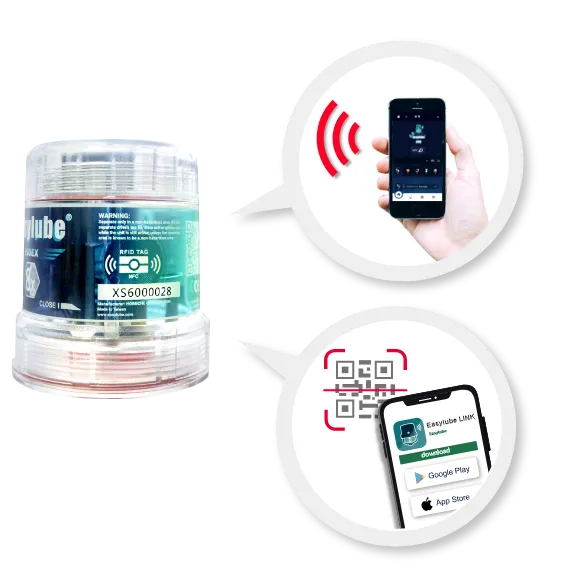

RFID technology (NFC) cooperates with the inspection software to implement "on-site inspection" service management.
With IP66 dustproof and waterproof rating, it can overcome severe pollution application environment.
24-hour active monitoring, once the equipment is abnormal, it will immediately blink the warning light.
The patented grease feedback pressure monitoring system can ensure that grease is added systematically into the bearing for lubrication.
The re-greasing interval can be set according to the bearing operating conditions to the range of 0.5-12 months.
The lubricator self-test function can be used to confirm whether the driving system is operating normally or not.
